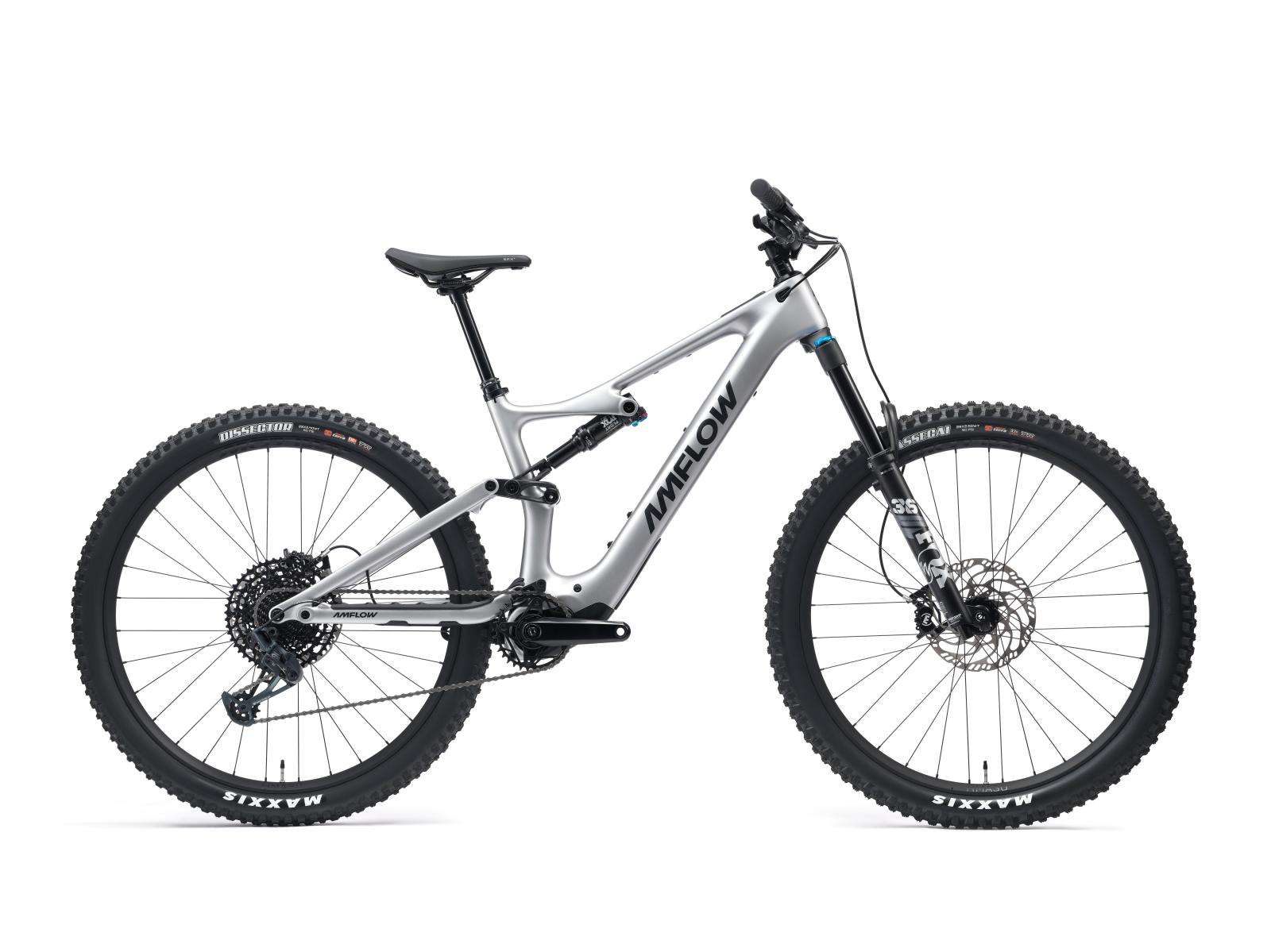

Frame:

Amflow PL Carbon Frame

Satin Silver

150mm rear travel

Compatible with 27.5" and 29" rear wheels



E-Bike System:

Avinox M1 Drive Unit: 105 N·m

Avinox Screen: 2-inch OLED Control Display

Avinox Integrated Battery: 800Wh

Avinox Wireless Controllers: Right and left sides

Avinox Fast Charger: 12A/508W



Fork:

FOX 36 Performance

160mm travel, GRIP Damper, 15×110mm, 44mm rake



Rear shock:

FOX Float Performance

Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever



Transmission:

Rear Derailleur: SRAM GX Eagle 12-speed

Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click

Cassette: SRAM PG-1230, 11-50T

Chain: SRAM NX Eagle

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)



Brakes:

Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)



Wheels:

Amflow HMA-30

Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready

Spokes: SAPIM E-Light J-bend

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T



Tires:

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR



Handlebar:

Amflow Enduro Alloy Handlebar

35mm rise, 800mm wide

5-degree upsweep, 9-degree backsweep



Grips:

Amflow Enduro Grips



Stem:

Amflow Enduro Stem, One-piece CNC

Length: 35mm

Clamping diameter: 35mm



Saddle:

Selle Royal SRX Plus



Seatpost:

KS Rage-i

M: 150mm

L: 170mm

XL/XXL: 190mm
